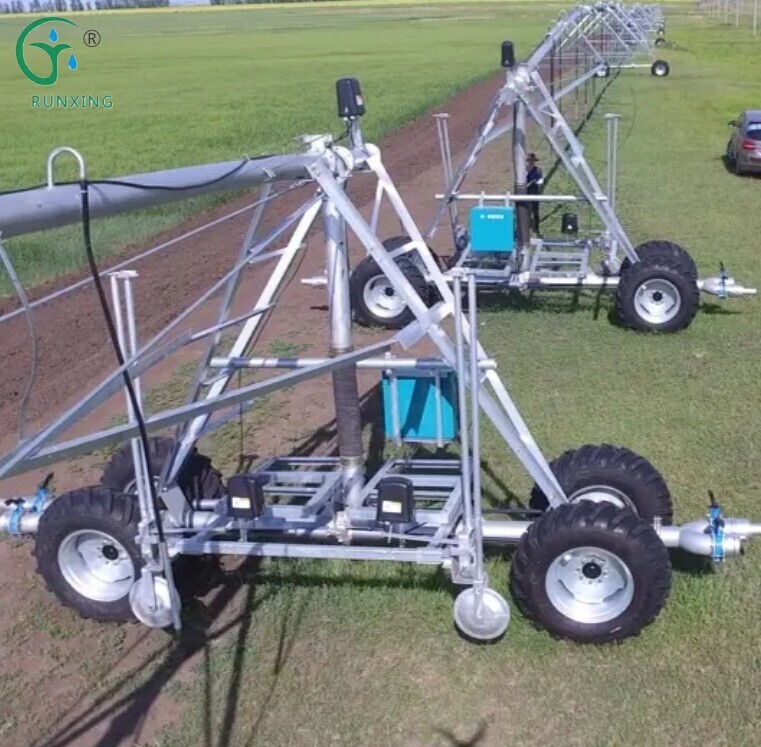

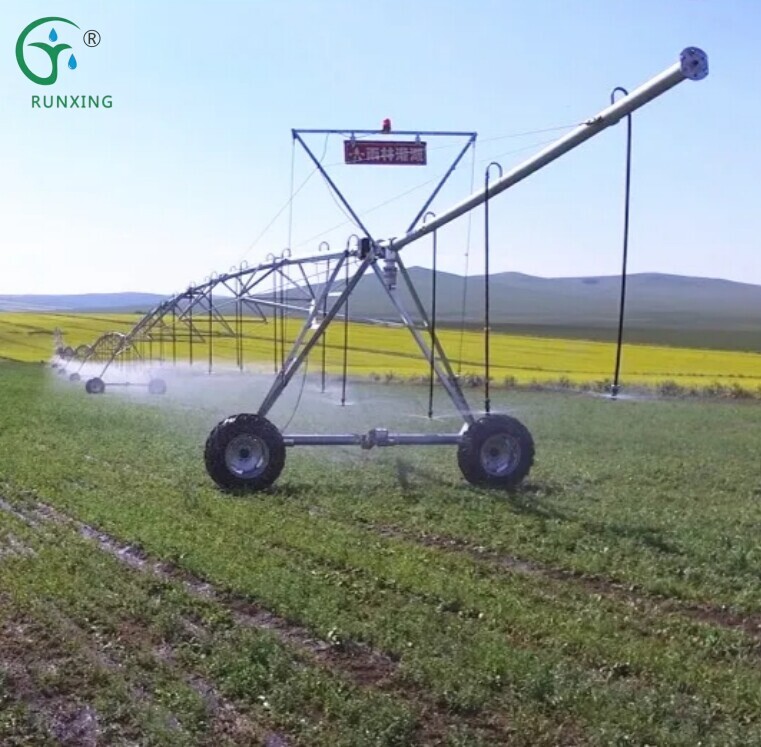

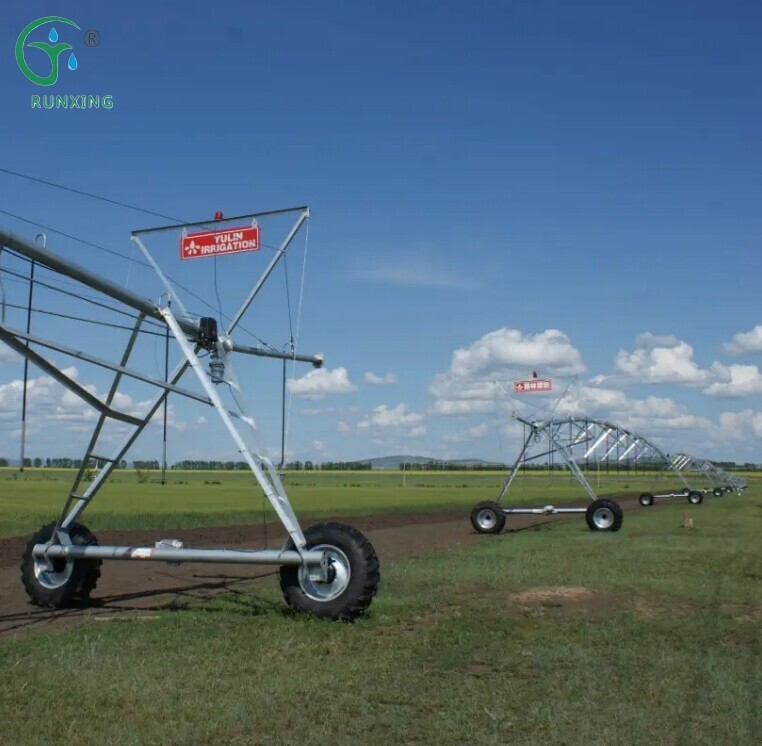

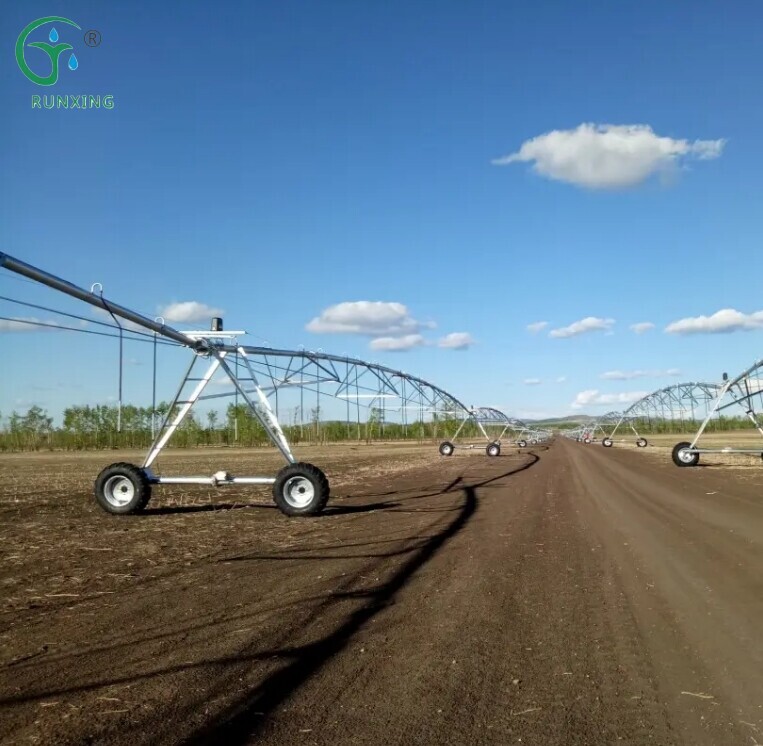

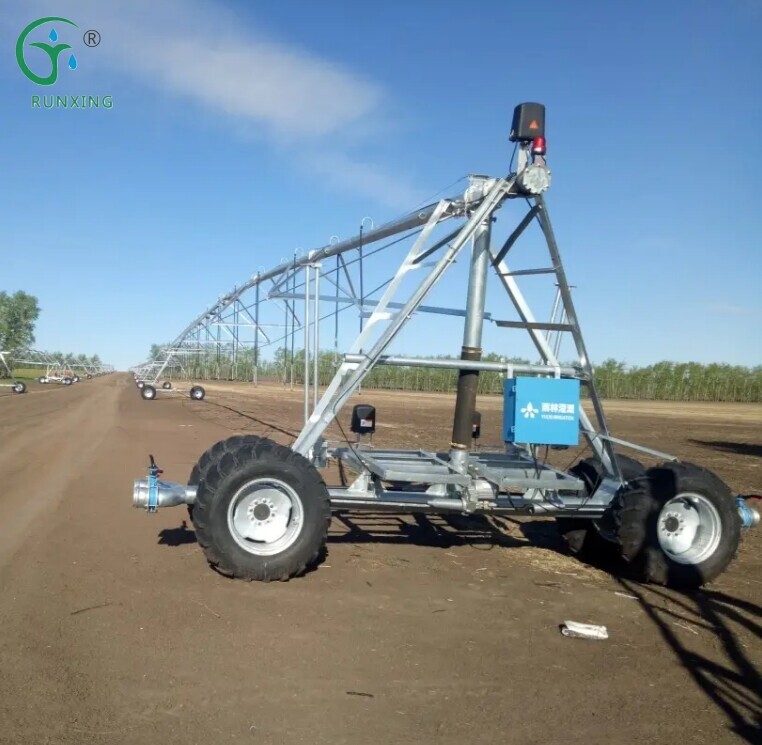

Best-selling Center Pivot Irrigation System

Runxing water-saving      Irrigate everything

Nourish hearts                   Water-drop outstanding

An efficient electric center pivot irrigation system delivers precision water distribution for agriculture, manufacturing, and retail, featuring remote monitoring, corrosion-resistant construction (hot-dip galvanized steel, 14.9-24" tires), PLC-controlled motors, customizable lengths (41–61.3m), and comprehensive 2-year system warranty plus 1-year core parts warranty."

* Price upon request

Contact Us

PRODUCT DESCRIPTION

Efficient Irrigation Solutions

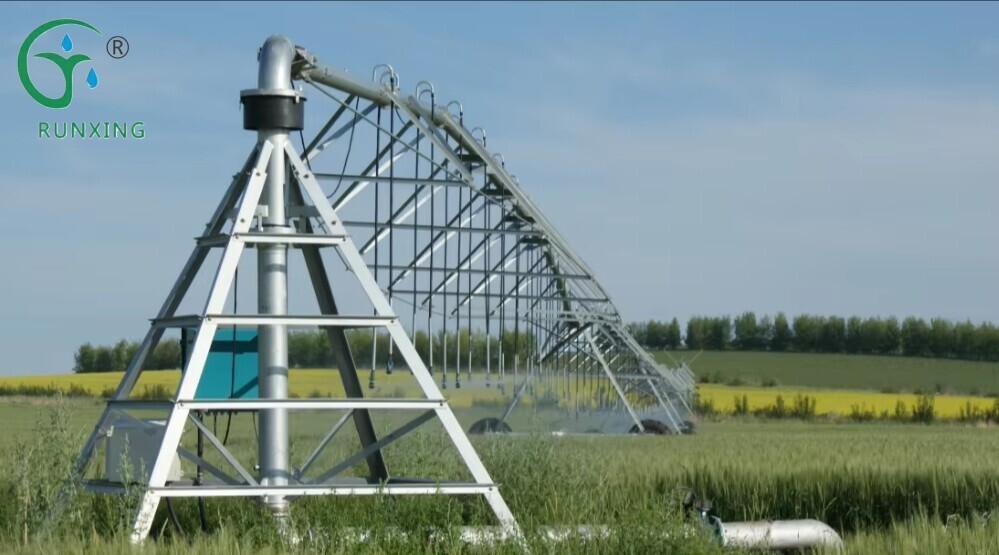

This electric center pivot irrigation system delivers precision water distribution for agriculture, manufacturing, and retail applications. Equipped with a remote monitoring system, users can control and manage operations from anywhere.

Durability & Stability
Constructed with high-grade metals and hot-dip galvanized coatings, the system ensures longevity and corrosion resistance. 14.9-24-inch irrigation tires provide stable and smooth movement across diverse terrains.

Advanced Technology
Powered by PLC-controlled motors and core components from Linsay Technology, the system offers precise water allocation. It includes a 2-year warranty on the entire system and a 1-year warranty on core parts.

Customizable Options
Available in lengths of 41m, 48m, 54.5m, and 61.3m, the system can be tailored to specific irrigation needs. A mechanical test report and guarantee video inspection are provided.

Comprehensive After-sales Support

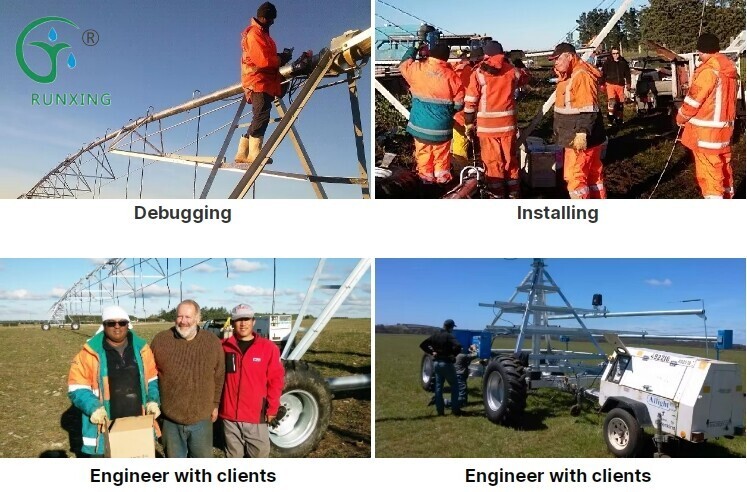

Our team offers global engineering services, on-site installation, commissioning, training, video technical support, and online assistance to ensure seamless operation and maintenance.

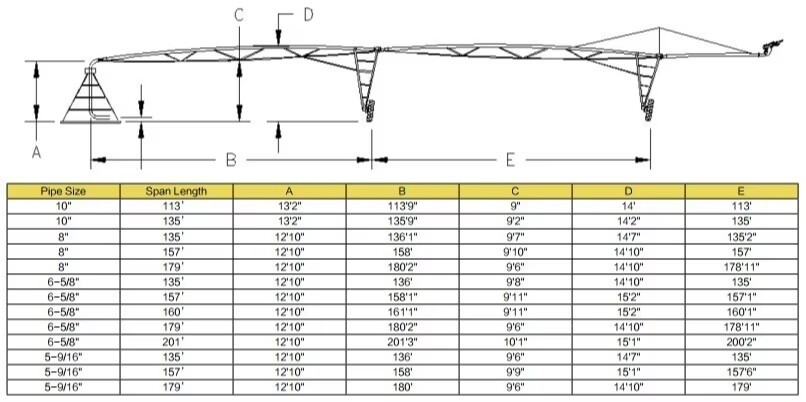

Center Pivot Irrigation System Allocation Standard
Main pipe diameter
6-5/8''(168mm*3.2mm,high frequency welded steel pipe
Standard span
6-5/8''(168mm)*54.5m(8 pipes)
King-sized span
6-5/8''(168mm)*61.3(9 pipes)
Overhang
5-9/16''(141mm)
King-sized overhang
4''(101mm)
Pipe length
22feet/one (6.7m)
Main pipe Flange thickness
10mm, Flange and pipe adopt double welded technology
Working voltage
460--380V/50--60HZ
Power supply mode
Diesel generator and the local power company provide
Tire type
14.9-24 irrigation tire
Motor power
0.75~1.5 horse power
Motor speed reducer
output speed of electric transmission gearbox:28~86RPM
Span body tower structure
Adopt "V" model tower
All the equipment with
The pressure of Nelson pressure governor:15PSI   (20PSI)(10PSI)
Main cable
4*4mm²+6*1.0mm²(resisting ultra violet and aging
The end has
LED working status instruction light
Irrigation intake
1 water inlet in center point,quick pipe joint connected structure
Irrigation intake caliber
8inches,the spot water supply pipe is more than 6 inches
Irrigation intake pressure
0.20--0.35mpa
Standard irrigation truss height from the ground
3.2m
Sprayer spacing
2.2--4m (the quantity:2-3sprayer/water pipes
After complete machine steel component was welded, it adopts hot galvanizing
ZONAL PIVOT IRRIGATION

The spans rotate less than 360 degree and therefore maximize the irrigated surface area when there is an obstacle (farm building, tree,pylon etc.) situated in the middle of the Field, or where the shape of the Field does not allow full rotation.An automatic reverse system allows continuous operation whilst the security system ensures that the spans stop at the end of the irrigated.
